SWDH 102S
SWDH102S is designed according to the operating conditions of small and medium-sized quarries and small open-pit mines, and is mainly used for drilling hard and medium-hard (F10 and above) rocks.
| Drilling Range | 76-115 mm |
|---|---|
| Engine Power | 179kW@2200rpm |
| Impact power | 21 kW |
| Air Compressor, Pressure | 10 Bar |
| Air Compressor, Displacement | 10 m³/min |
SUNWARD SWDM 415

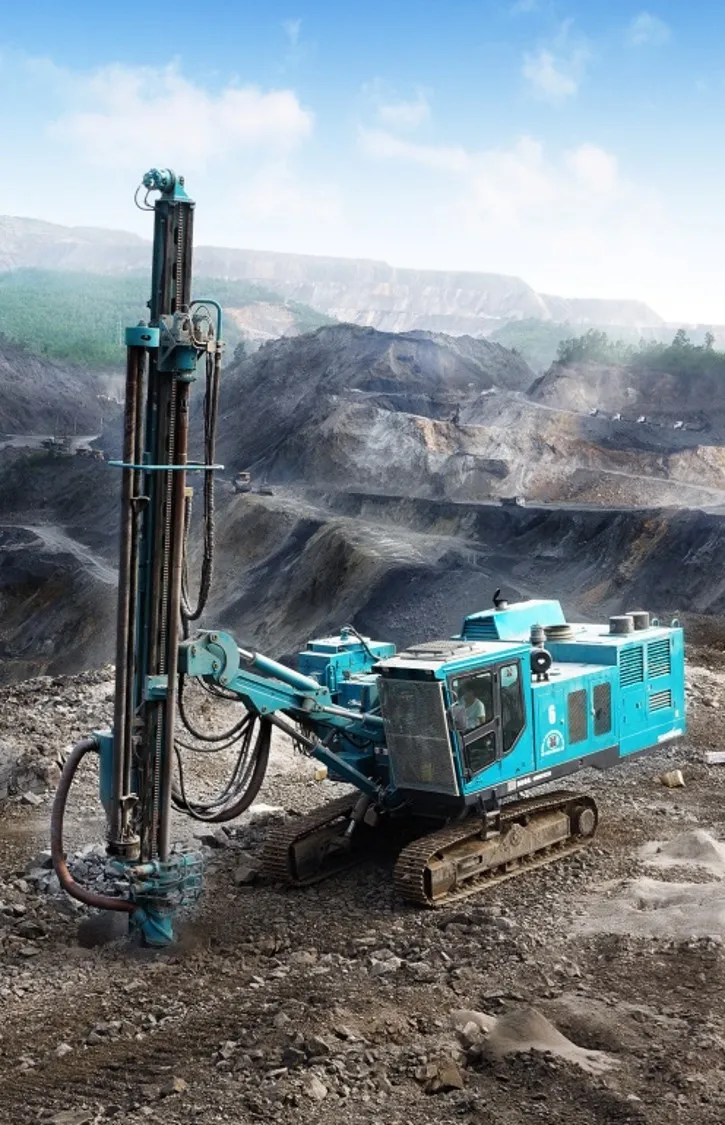

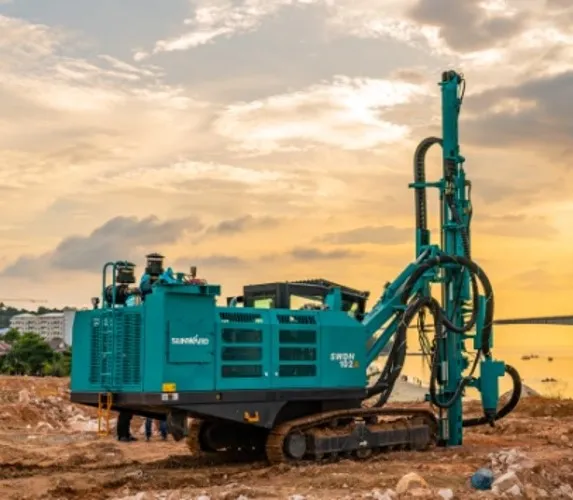

SWDH102S is designed according to the operating conditions of small and medium-sized quarries and small open-pit mines, and is mainly used for drilling hard and medium-hard (F10 and above) rocks. It can be used for rock blasting and drilling in the construction of quarries, civil works, road projects, openpit mines and hydropower plant, etc. This product is equipped with a high-efficiency hydraulic rock drill, with fast drilling rate, low energy consumption, flexible maneuverability and strong gradeability. It can be used for drilling operations in complex terrain.
DIMENSIONS
| Operating weight | 15 ton |
| Drilling Range | 76 – 115 mm |
| L x W x H (Working) | 9.2×2.6×8.6 m |
| L x W x H (Transportation) | 11.2×2.6×3.5 m |
MOTOR
| Motor type | Cummins QSC8.3 |
| Rated power output | 179 kW@2200 rpm |
Performance
| Hydraulic rock drill Impact power | 21 kW |
| Air Compressor, Pressure | 10 Bar |
| Air Compressor, Displacement | 10 m³/min |
HIGH PERFORMANCE
Experience a remarkable enhancement in efficiency and unmatched productivity with our drilling rig. This cutting-edge equipment features a high-speed rotary mechanism that accelerates drilling processes, significantly reducing project timelines. Moreover, the rig’s main winch boasts an impressive line speed, ensuring swift and seamless operations during lifting and lowering tasks. These combined features contribute to elevated performance levels, allowing you to achieve your project goals with greater speed and precision.
ENERGY SAVING
Our drilling rigs prioritize environmental protection and energy efficiency through a range of innovative features. At the heart of this commitment is the incorporation of an advanced Cummins engine, ensuring optimal performance while minimizing emissions. In addition, our rigs are designed with a focus on reducing noise levels, contributing to a more sustainable and quieter operational environment. Furthermore, the integration of technology that promotes low fuel consumption aligns with our dedication to conserving energy resources. These combined efforts underscore our commitment to both environmental responsibility and operational excellence.
EXCEPTIONAL SERVICE QUALITY
Our commitment to providing exceptional service quality is evident through our comprehensive approach to customer support.
Our dedicated team ensures swift technical assistance, addressing any concerns or inquiries you may have in a timely manner. Additionally, our after-sales service is characterized by its responsiveness, guaranteeing that your needs are met promptly and effectively. Moreover, our commitment extends to providing efficient parts assistance, ensuring that you have access to the components you require without delay.
This holistic service approach underscores our dedication to delivering unparalleled support throughout your experience with our products.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWDH 102S’ expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides Standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by a warranty, standard for all Sunward products.
