SWTH 1056

SWTL 1056SWTL 1056

SWTH 1056

SWTH series telescopic handlers are mechanical, electric and hydraulic integrated multi-functional handling and lifting logistic equipment

Max. Lifting height17.06 m
Max. outreach13 m
Power output97 kw
Operating weight15450 kg
INTERESTED? CONTACT YOUR NEAREST DEALER
Share:

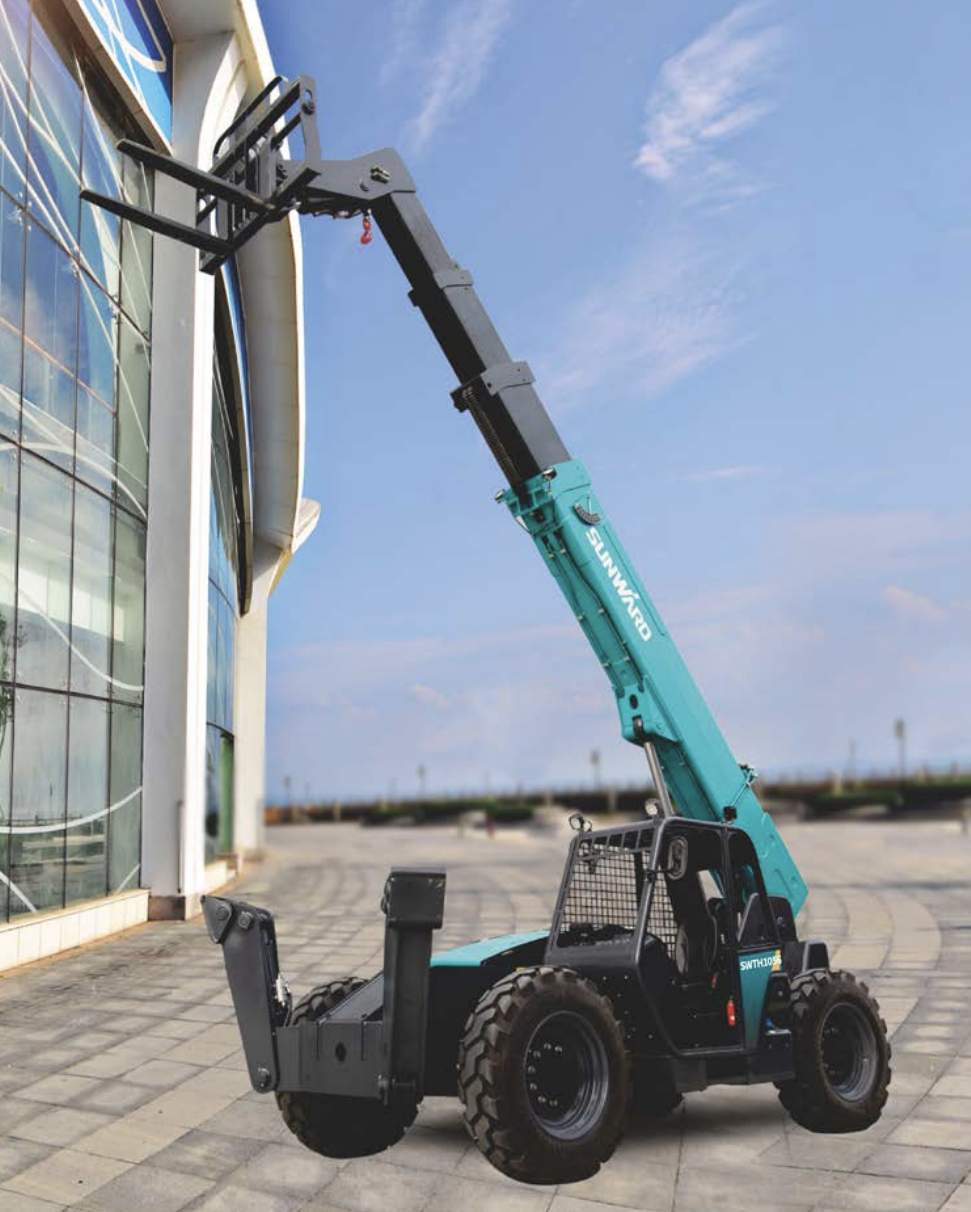

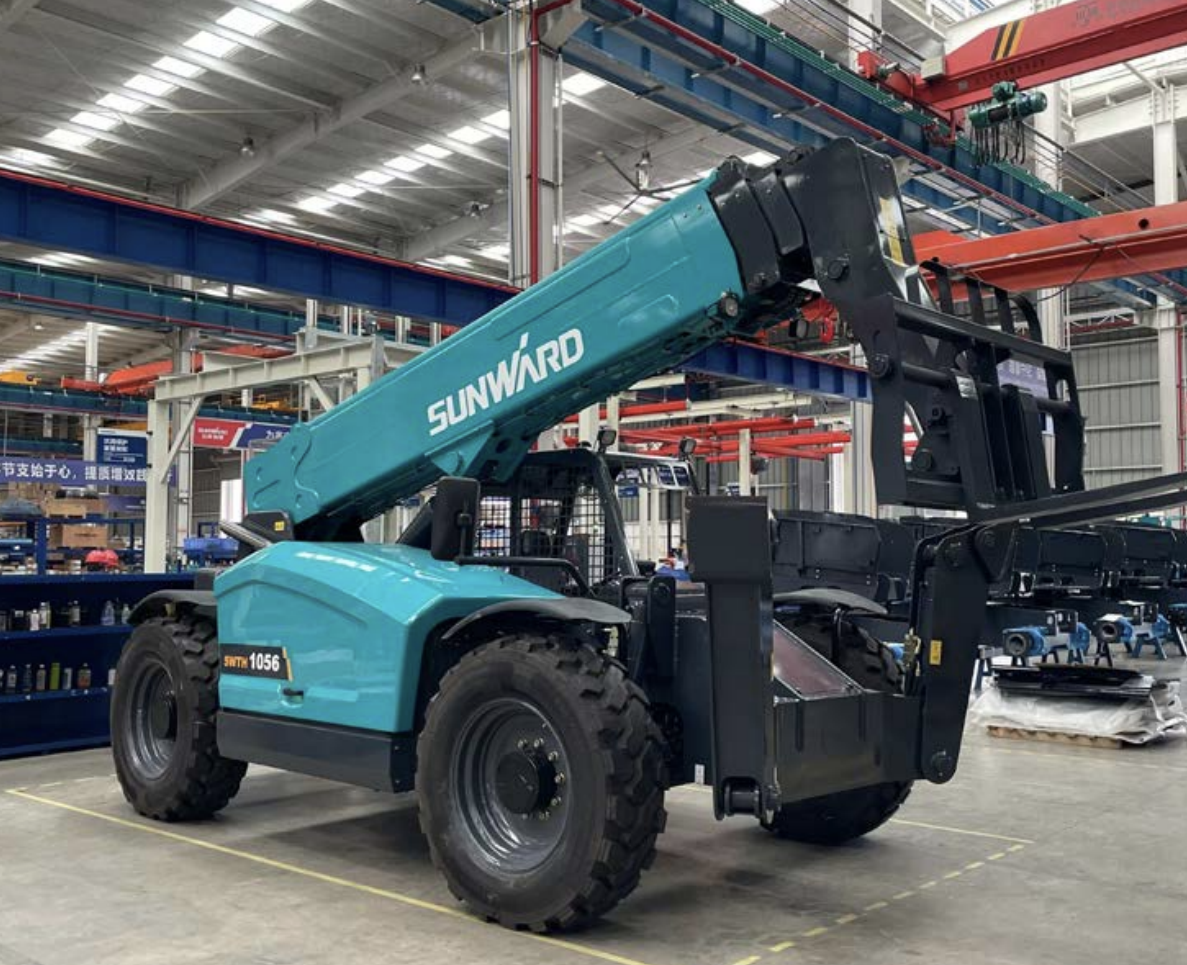

SUNWARD SWTL 1056

SWTH series telescopic handlers are mechanical, electric and hydraulic integrated multi-functional handling and lifting logistic equipment of a new generation independently developed by Sunward, and their performance parameters have reached the international advanced level. They are an ideal and efficient loading, unloading and handling tool for the modern industry, construction industry and agriculture. The equipment has been widely used at factories, warehouses, terminals, construction sites, farms for cultivation, material yards, etc.

Dimensions

Operating weight 15450 kg
Length (to forks) 7340 mm
Width 2560 mm
Height 2540 mm
Ground clearance 457 mm

Engine

Model Cummins QSF3.8L Tier 4F
Rated power output 97 kw

Working Range & Performance

Max. capacity 4536 kg
Max. lifting height 17.06 m
Max. outreach 13 m
Max. travel speed 32 km/h

POWERFUL & RELIABLE PERFORMANCE

The SWTH 1056 is engineered for demanding applications with a robust powertrain and torque converter that deliver smooth and efficient performance. The off-road pneumatic tires provide exceptional traction and stability on rough terrain, making it a true all-terrain performer.

PREMIUM COMPONENTS

Built with high-end industrial design, the SWTH 1056 features advanced hydraulics, an anti-tip protection system, and an oil pipe anti-blasting system for superior durability. The boom slow-down and inching functions allow for precise control and enhanced safety during operation.

BEST VALUE FOR MONEY

The Sunward SWTH 1056 combines high performance, premium components, and cutting-edge safety features at a competitive price. It is a cost-effective and high ROI solution for businesses looking for a durable and reliable telehandler.
