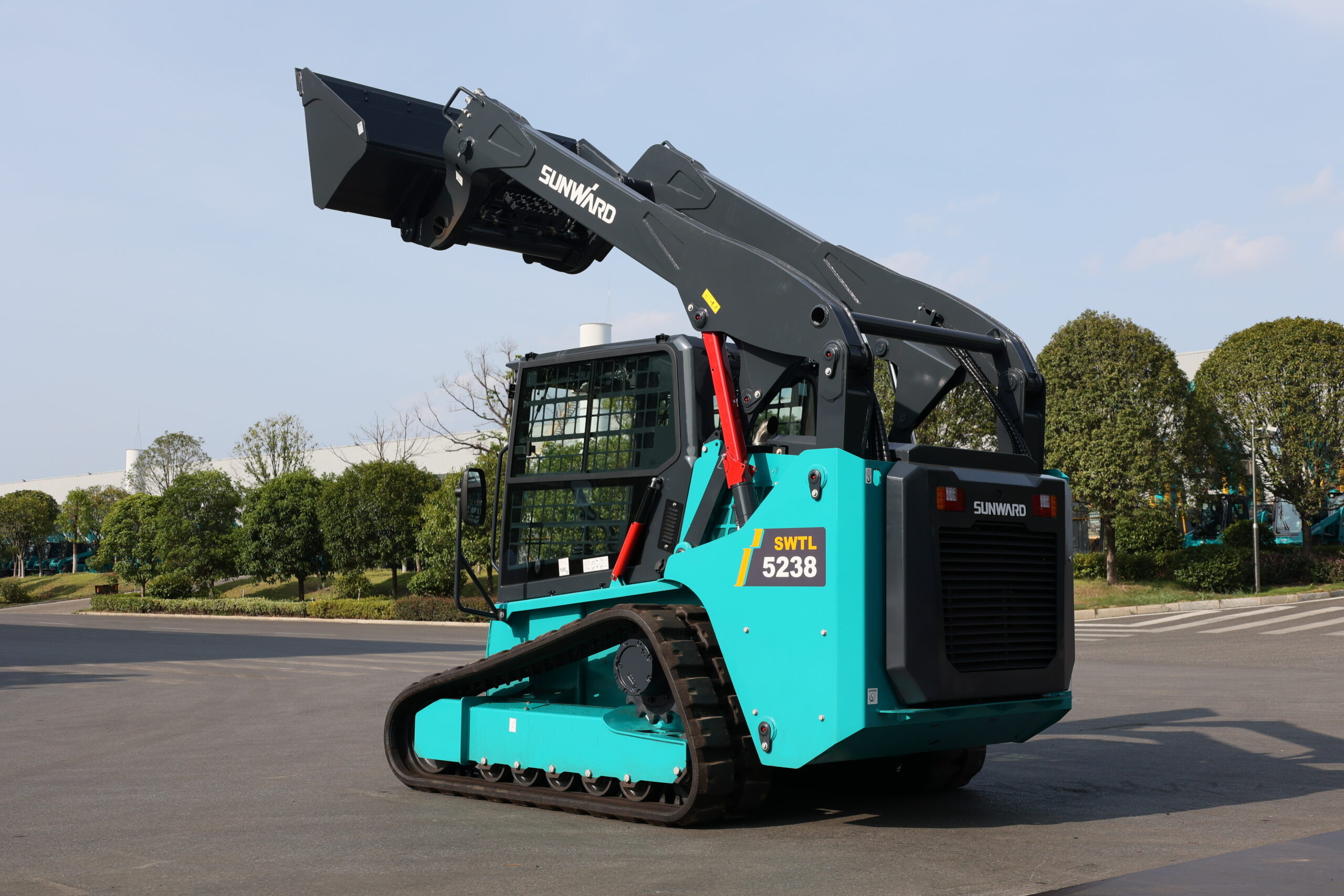

SWTL 5238
A brand-new exterior and interior design with clean lines and a clear silhouette, highlighting a sense of technology and strength.
| Rated operating capacity | 1 500 kg |
|---|---|
| Tipping load | 4 286 kg |
| Rated power output | 85.1 kW |
| Operating weight | 5 375 kg |
| Lift height | 3 360 mm |
| Breakout force (lift) | 3 000 kg |

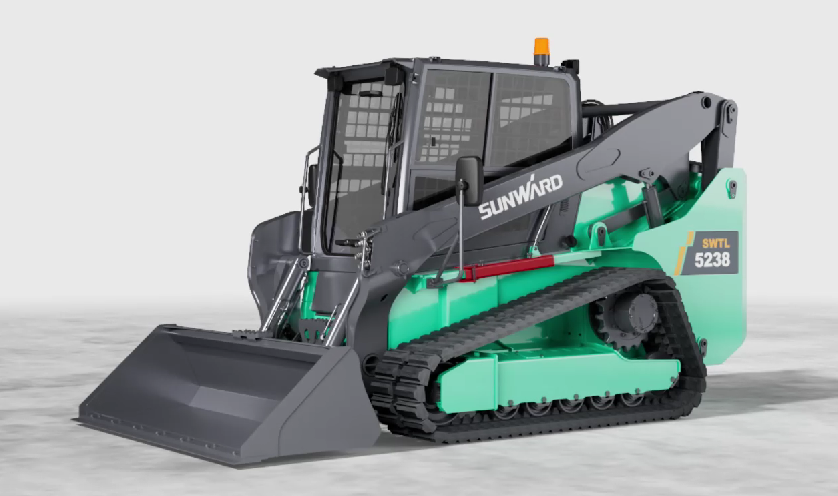

SUNWARD SWTL 5238
A brand-new exterior and interior design with clean lines and a clear silhouette, highlighting a sense of technology and strength.
DIMENSIONS & WEIGHT
| Operating weight | 5 375 kg |
| Length without bucket | 3 130 mm |
| Length with standard bucket | 3 930 mm |
| Width without bucket | 2 015 mm |
| Height to top of ROPS | 2 110 mm |
| Ground clearance | 277 mm |
| Turning radius from center (standard bucket) | 2 385 mm |
ENGINE
| Model | Kubota V3800-T |
| Emission rating | Tier 4 Final |
| Rated power output | 85.1 kW |
PERFORMANCE
| Rated operating capacity | 1 500 kg |
| Tipping load | 4 286 kg |
| Breakout force curl | 3 900 kg |
| Breakout force lift | 3 000 kg |
| Travel speed | 8~12 km/h |
BUILT FOR MULTITASKING
The Sunward SWTL 5238 compact track loader has been built with versatility, compactness, and extreme operation sites in mind, to be easily maneuverable in small spaces and rough terrain.
It is equipped with a suspended undercarriage system and tracks, offering excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt.
A compact loader starts with how well it is designed for transportation. The SWTL 5238 does more than simply align with the EU’s transportation regulations – truly compact (2 015 mm width) and lightweight (5 375 kg), its small frame allows easy, safe, and secure transport behind a pickup truck.
The SWTL 5238 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).
RELIABLE PERFORMANCE
Despite its compact size, the SWTL 5238 has impressive breakout force, huge lift capacity, and fast cycle times.
The powerful Kubota V3800-T engine delivers a power of 85.1 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, long service life and complies with the European Union’s Stage V emission requirements.
COMFORT AS STANDARD
The comfort of the Sunward SWTL 5238 starts with easy cab access. Innovative upward-swinging door replaces traditional side-opening door. Can be opened freely with the boom in any position, enhancing convenience and safety.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT AN OPTION
Safety is and will always be a priority for Sunward. The SWTL 5238 has been designed for operator safety.
Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guarantee maximum safety.
A seat switch and armbar switch also prevent the machine from being started without an operator present.
