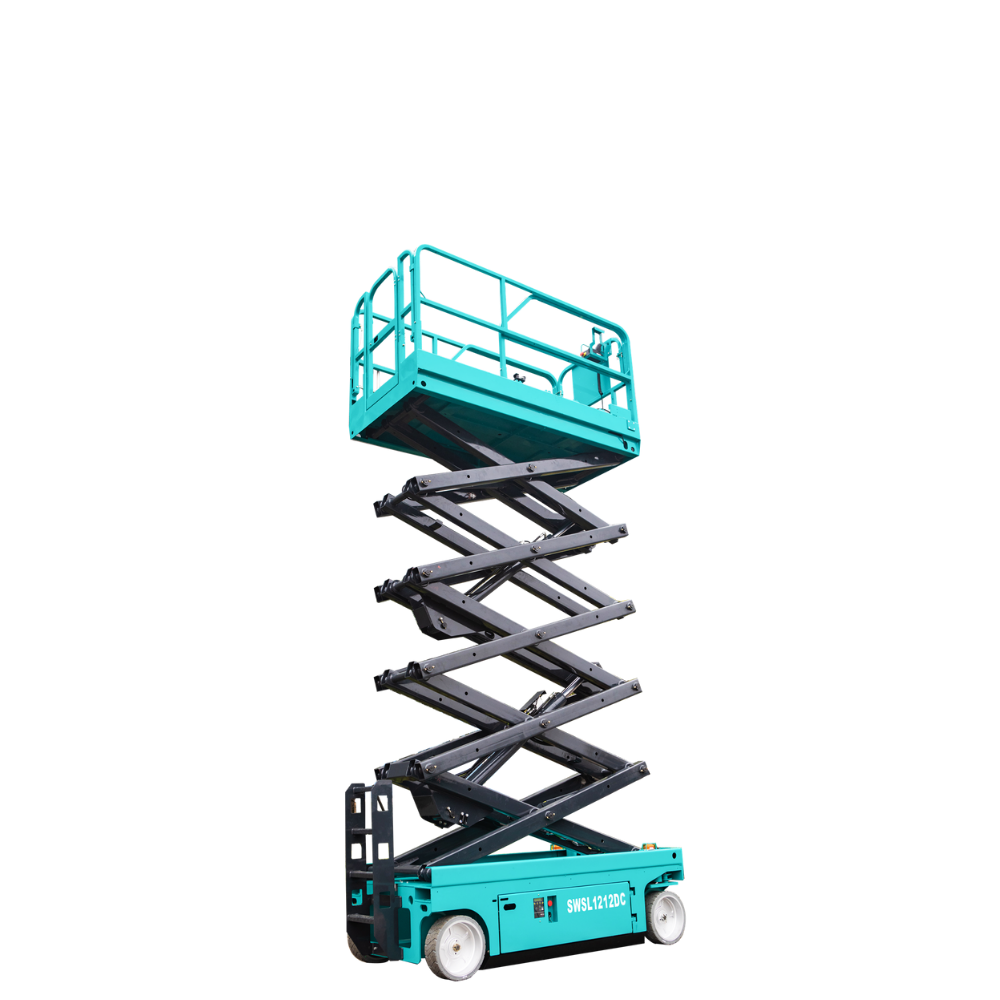

SWSL 1212DC

Sunward_SWSL 1212DC_MAINSunward_SWSL 1212DC_MAIN

SWSL 1212DC

The Sunward SWSL 1212DC features a hydraulic drive, making it durable and cost-effective. Despite its very compact size, it is very strong and offers excellent performance, comfortable and safe operation, and it is very nearly maintenance-free. It can be used both indoors and outdoor.

Max. working height12 m
Capacity320 kg
Machine width1.17 m
Operating weight2 940 kg
PropulsionElectric
Drive typeElectric
INTERESTED? CONTACT YOUR NEAREST DEALER
Share:

SUNWARD SWSL 1212DC

The Sunward SWSL 1212DC features a hydraulic drive, making it durable and cost-effective. Despite its very compact size, it is very strong. As all the Sunward scissor lifts models, it offers excellent performance, comfortable and safe operation, and it is very nearly maintenance-free. Its size makes it very easy to transport to every jobsite, and, thanks to its zero emissions, it can be used both indoors and outdoor.

Discover all the other advantages of the Sunward SWSL 1212DC.

GENERAL SPECIFICATIONS

Propulsion Electric
Drive type Electric
Operating weight 2 940 kg
Brakes Multi-Disc Friction

REACH SPECIFICATIONS

Max. working Height 12 m
Max. platform height 10 m

DIMENSIONS

Ground clearance – Platform elevated / lowered 110 / 20 mm
Machine height – Lowered, rails raised / rails folded 2.49 / 1.95 m
Platform height – Lowered 1.36 m
Overall length 2.47 m
Overall width 1.17 m
Platform length 2.27 m
Platform width 1.15 m
Platform extension length 0.9 m

PERFORMANCE

Drive speed – Platform elevated / lowered 0.8 / 4.0 km/h
Max. gradeability 25%
Platform Capacity 320 kg
Extension capacity 113 kg
Max. working angle 1.5˚ / 3˚
Turning radius – Inside / Outside 0 / 2.2 m

MADE FOR EUROPE

Like all the Sunward machines on the European market, the SWSL 1212DC  is designed to meet European customer needs and has all the EU certifications.

SAFETY FIRST

As you know when working at height, safety is a priority. You must be able to fully trust your equipment. Thus you need the stability of a safe and intelligent machine. Sunward scissor lifts have been designed with safety in mind.

Sunward’s specialized bending machine produces safe guard rails with the best protection on the market.

The automatic pothole protection ensures full stability during rising operations. The pothole protection lateral plate opens automatically to provide less ground clearance and greater stability.

EXTRA BATTERY LIFE

The Sunward electric scissor lifts rely on the best electric battery in the market to relay the power to fulfill all necessary operations. They are equipped with Trojan high-quality long-life batteries, ensuring long run-time before charging. They also offer zero emissions and quiet operation for sensitive environments.

SMART CHARGING

Sunward scissor lifts are equipped with fast charging battery. The integrated charger prevents voltage surges to provide a higher level of protection. The storage memory function enables you to query the amount of charge in real-time.

EASY MAINTENANCE AND SERVICE

For easy maintenance, the ‘to be serviced’ code is displayed automatically. Thanks to the USB port, a smartphone can also be used for diagnostics. The swing-out hydraulic oil tank and power module trays allow easy access to components for convenient service.

LOW COST OF OWNERSHIP

Our scissor lifts are carefully designed and all key components are selected from the world’s leading providers. Easy access to components for convenient service avoid having stacked components. Service is a snap that contributes to reducing the cost of ownership. Rugged, reliable, and nearly maintenance-free, the Sunward scissor lifts are designed to provide ultimate performance for many years.

NOT AVAILABLE

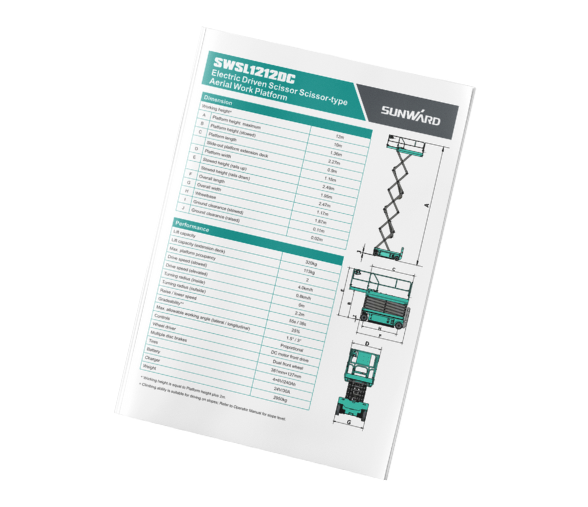

SWSL 1212DC SPEC SHEET
